When Lithium Titanate Is the Right Call, and When It Isn't

One number explains the whole chemistry

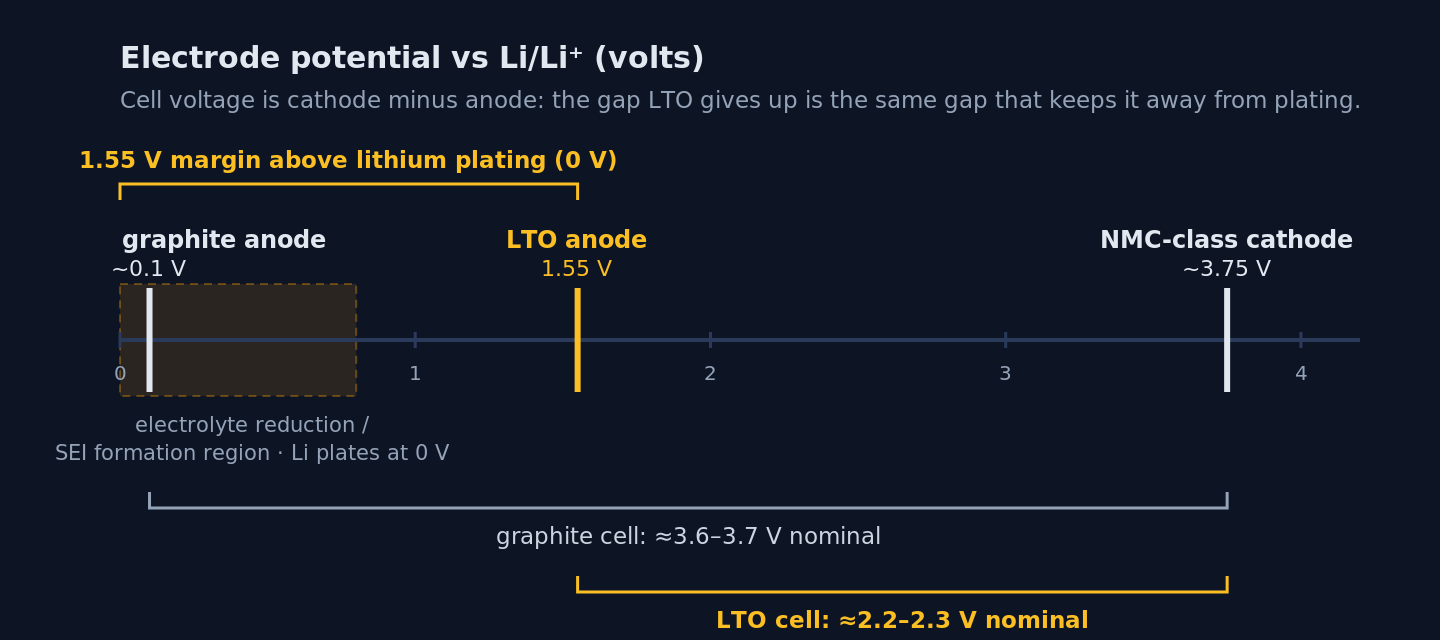

A lithium-ion cell's voltage is the difference between its cathode and anode potentials. Graphite, the anode in nearly every lithium-ion cell built today, operates at roughly 0.1 V against lithium metal. Lithium titanate (Li₄Ti₅O₁₂) operates at about 1.55 V. That single substitution does everything that follows, good and bad.

On the good side, 1.55 V sits above the potential at which common electrolytes break down, so the cell largely skips the solid-electrolyte-interphase (SEI) chemistry that governs graphite aging. The Frontiers in Materials review of LTO puts it directly: LTO cells "do not form stable SEI layers," and it credits the elevated potential with "eliminating the production of any type of dendrite formation." Lithium plating, the failure mechanism that makes sub-freezing charging dangerous for graphite cells, requires driving the anode near 0 V; an anode resting 1.55 V above that stays well clear of it under normal operating conditions. LTO is also near zero-strain: about 0.2% volume change on lithiation versus roughly 10–13% for graphite, which is the mechanical reason the cycle numbers get so large.

On the bad side, every volt the anode sits above lithium is a volt subtracted from the cell. Pair LTO with the usual cathodes and you get 2.2 to 2.4 V nominal depending on the pairing (Toshiba's high-energy SCiB cells are 2.3 V, its high-power cells 2.4 V, Leclanché's LT34 is 2.2 V), against 3.2 V for LFP. The same review notes the 1.55 V plateau caps the anode at about 175 mAh/g, roughly 60% of what the material would deliver run to 0 V. Lower voltage and lower capacity per gram compound into the energy-density penalty below. The safety margin and the energy penalty are one property, priced together.

The energy penalty, in datasheet numbers

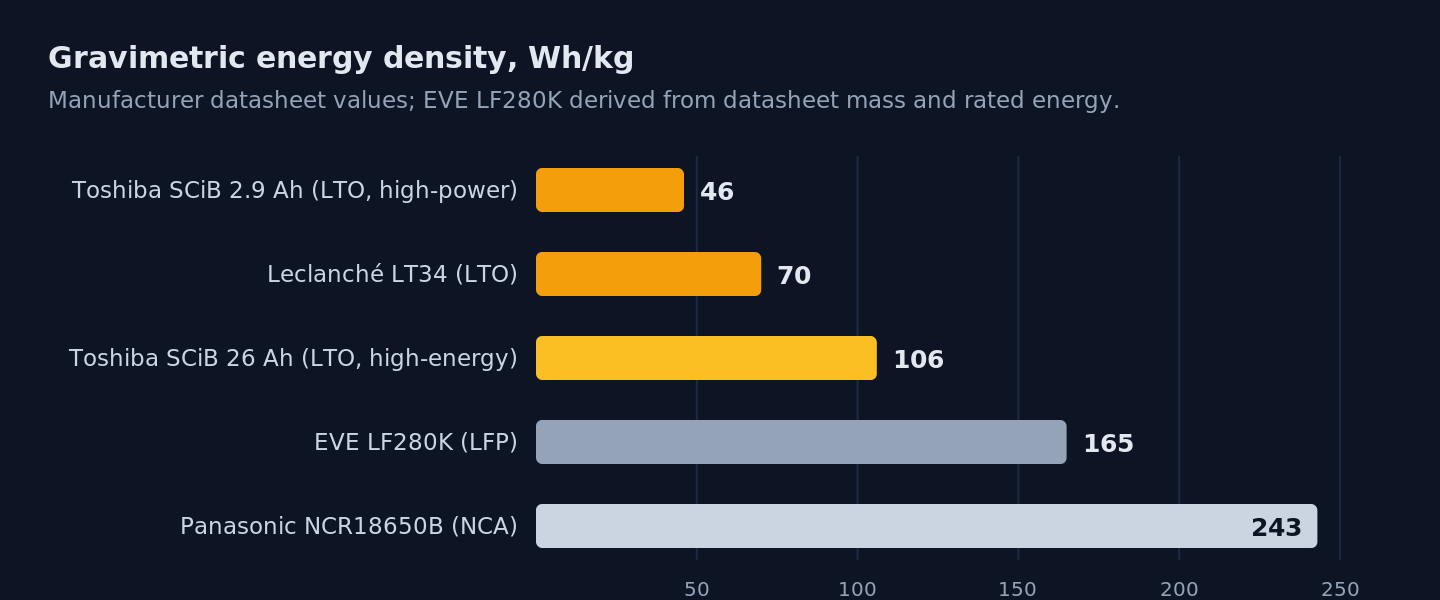

Quoting one energy density for LTO is misleading, because the shipping range spans 2.3×. Toshiba's own line runs from 46 Wh/kg (2.9 Ah high-power cell) to 106 Wh/kg (26 Ah high-energy cell). Here is the datasheet picture, with the comparison cells we could verify against primary documents:

The best LTO cell on the market stores about two-thirds of LFP's energy per kilogram and per liter, and well under half of NCA's. (EVE figures are our arithmetic from the LF280K specification: 896 Wh at 5.42 kg and 2.60 L.) If the pack's job is to carry energy, that gap is usually decisive on its own.

The lower cell voltage adds a second, less-quoted cost. A 48 V bus needs 15 cells in series at LFP's 3.2 V but 21 at Toshiba's 2.3 V; a 400 V pack needs 125 versus 174. That is roughly 40% more cells in series, which means 40% more BMS monitoring channels and balancing circuits, plus the extra series interconnects that come with them (our arithmetic, and a real BOM and reliability cost that a $/kWh comparison hides).

What you get back

Charge rate that does not trade against life

Toshiba states its 2.9 Ah cell "can be charged from 0 to over 80% SOC in one minute," and its 20 Ah high-energy cell to over 80% in six minutes. Leclanché rates the LT34 at 6C continuous charge (204 A) with 10C peaks. Against that, EVE's LF280K, a representative current LFP cell, is rated 1C continuous with 2C pulses of 30 seconds.

The more important point is what the fast charging costs in cycle life, which on Toshiba's high-power cell is approximately nothing:

"The 2.9Ah SCiB™ cell maintains over 80% of its initial capacity after 40,000 charge/discharge cycles at a tough charge/discharge rate (10C) and high temperature (35°C) conditions."Toshiba SCiB high-power cell specifications, global.toshiba

That endurance figure is measured at 10C. For graphite chemistries, fast charge accelerates exactly the aging and plating mechanisms that limit life, which is why their fast-charge modes come with derating tables. For that cell, the headline cycle number and the headline charge rate are the same test. (The high-energy cells trade some of this away; their cycle rating carries a 70% endpoint, covered below.)

Charging below freezing

Graphite-anode cells carry a hard charge floor because charging below it plates metallic lithium on the anode. Battery University's temperature-charging reference states it plainly: "plating of metallic lithium occurs on the anode during a sub-freezing charge that leads to a permanent degradation in performance and safety." The datasheets agree: EVE's LF280K charge window starts at 0 °C; Panasonic's NCR18650B starts at +10 °C. Discharging in the cold is allowed; recharging is the problem, and the standard workaround is heating the pack before charging it.

LTO removes the floor's mechanism rather than derating around it. With the anode 1.55 V above plating potential, Toshiba states SCiB provides discharge current down to −30 °C, that its 20 Ah cell "can also be charged at low temperatures," and that its 10 Ah cell "can be charged and discharged at temperatures below the freezing point." Two honest qualifiers: Toshiba's public pages do not attach a rated C-rate to a specific sub-zero charge floor, so get the controlled datasheet before designing to one, and the limit is not an LTO-wide constant, since Leclanché rates the LT34 at −20 °C. This is why LTO shows up in battery rail, underground mining and outdoor equipment that must recharge where it sits.

Cycle life, with the conditions attached

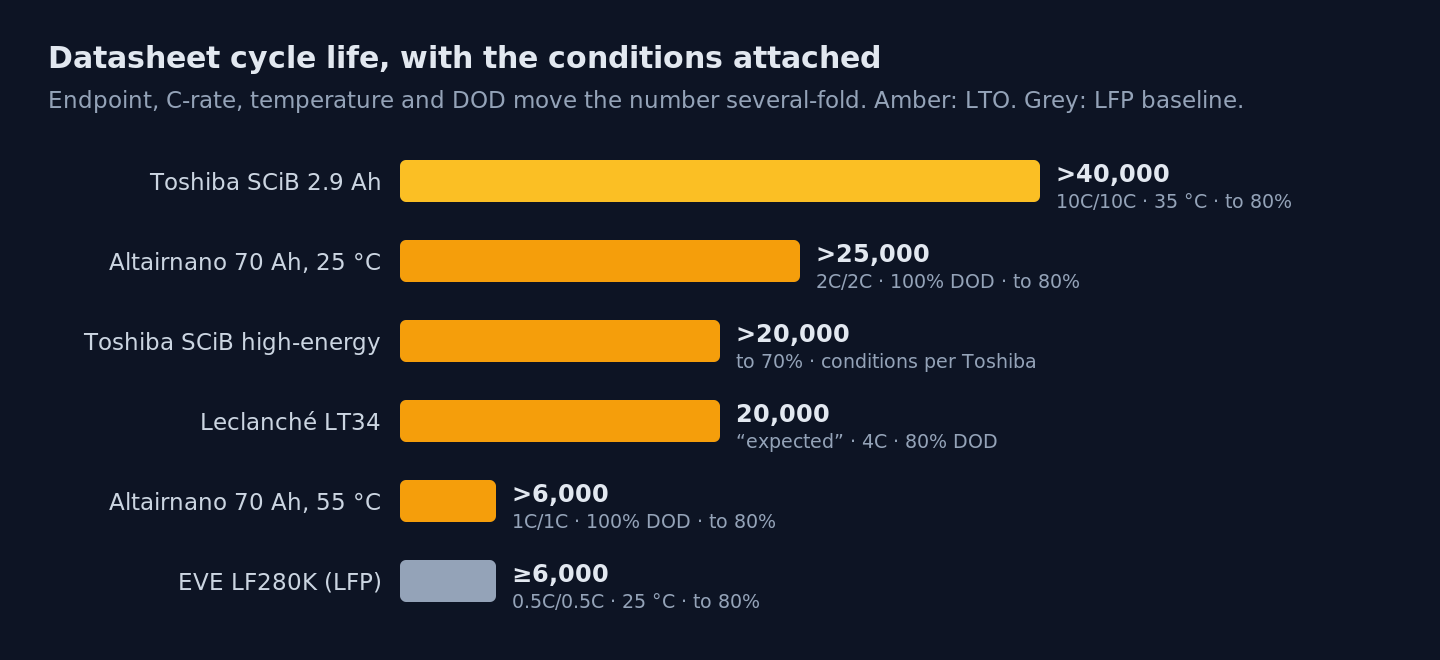

LTO cycle-life claims circulating in the market disagree by an order of magnitude, and the spread is almost entirely missing conditions. The rule: a cycle number means nothing without its endpoint, C-rate, temperature and depth of discharge. What the manufacturer documents actually substantiate:

Three things in that chart deserve attention. First, Toshiba's two lines use different endpoints: the 40,000-cycle figure is to 80% capacity, the high-energy 20,000-cycle figure is to 70%. Quoting "Toshiba: 20,000 cycles" without the endpoint materially overstates it, and it is the most-abused LTO number in circulation. Second, temperature dominates: Altairnano's own datasheet drops from more than 25,000 cycles at 25 °C (cycled at 2C/2C) to more than 6,000 at 55 °C (cycled at a gentler 1C/1C), a 76% loss even with the rate reduced. Third, the honest LFP baseline is better than the LTO marketing copy admits: EVE rates the LF280K at ≥6,000 cycles to 80% (at 0.5C, 25 °C), not the "500 to 1,500 cycles" that LTO comparison pages still quote against it.

The honest downsides

Beyond energy density and cell count, three more, less discussed:

• Gassing. LTO cells can generate gas and swell, a mechanism documented in the Journal of Materials Chemistry A and accelerated at elevated temperature. Hard prismatic cases tolerate it; soft-pouch LTO is where swelling bites. Ask any prospective supplier for gassing data at your worst-case temperature.
• Supply concentration. A 2019 industry review hosted by NASA counted 17 LTO cell makers worldwide, 11 of them in China, and noted that the US producer it listed, Xalt Energy, had stopped LTO cell production in January 2018. Toshiba is the reference supplier for Western industrial programs and the only one with US-assembled LTO products. Scope any LTO program with explicit single-source risk, long-lead buffers, and a documented fallback chemistry.
• "Resists thermal runaway" is not "cannot burn," and heat still ages it. Skipping conventional SEI chemistry removes what is commonly described as the initiating exotherm of the runaway cascade. In one published calendar-aging study at 60 °C and high state of charge, the NMC and NCA cells tripped their internal safety devices and stopped working entirely while the LTO cells kept operating; the same study recorded drastic LTO capacity loss at 60 °C. Read those together: the margin is against runaway initiation, not against aging. LTO is still a lithium-ion cell with a flammable electrolyte, and pack-level protection, fusing and thermal design remain mandatory.

What LTO costs, and the right way to count it

Here the sourcing gets honest and thin. BloombergNEF's 2025 Battery Price Survey, the industry's standard reference, prices the global average pack at $108/kWh, LFP packs at $81/kWh, NMC at $128/kWh, and stationary-storage packs at $70/kWh. It publishes no LTO figure at all, and we could not find an independent index that does. That absence is the single most informative fact about LTO pricing. Vendor statements and market-research estimates put LTO cells at roughly 2 to 3 times LFP per kWh; treat that as an estimate, not a quote.

Per-kWh is also the wrong denominator for the duty cycles LTO actually wins. Two corrections, both our own arithmetic, offered as illustrations:

• Cost per cycle. At 3× LFP's price per kWh and 20,000 cycles (Toshiba high-energy, to 70%) against LFP's 6,000 (EVE LF280K, to 80%), LTO comes out roughly 10% cheaper per delivered kWh-cycle. The endpoints differ, which flatters LTO, and calendar life may bind before cycle life in low-utilization systems, which flatters LFP. The point is not the 10%; it is that the sign flips.
• Sizing on power. A load that draws 300 kW continuously needs at least 300 kWh of LF280K-class LFP just to respect the 1C continuous rating, whatever the energy requirement is. A 6C-capable LTO bank covers the same power with 50 kWh. In power-limited duty, the $/kWh premium is paid on a bank several times smaller, which is how a 2–3× premium per kWh can become a cheaper system. (The chargers and power conversion still have to be sized for the full power either way; recharging the small bank fast is part of the point, and part of the bill.)

The US Department of Energy's storage assessment points the same direction from the other side: it benchmarks LFP's levelized cost of storage for long-duration grid use and notes LTO "would still need advances in production to meet the cost targets." For energy-limited duty, the DOE's implicit conclusion matches ours: buy LFP.

Where LTO actually runs

The deployment record reads like a list of power-limited, cold, or confined duty cycles, which is the pattern to check your own application against. On Toshiba's named-customer list alone: Tohoku Electric's Nishisendai substation in Japan, a 40 MW / 20 MWh frequency-regulation plant that works at 2C at system level; the Willey Battery Utility in Hamilton, Ohio (6 MW / 2 MWh, a 3C system); Central Japan Railway's N700S Shinkansen emergency self-propulsion batteries; Siemens Mobility's Mireo battery regional train; Normet's SmartDrive underground mining equipment; hybrid RTG port cranes; and a 125 VDC data-center and switchgear UPS line rated for more than 15,000 cycles with a 12-year warranty, assembled in the US. Frequency regulation, regenerative braking, crane load cycling, underground equipment that recharges at the face: every one is a duty cycle that would force massive oversizing in a 1C chemistry.

The decision rule

Strip the vendor language and the choice is mechanical. Count how many of these describe the application: continuous or repetitive charge/discharge above about 4C; charging below 0 °C (confirm the rated cold-charge C-rate with the cell maker); more than 15,000 lifetime cycles; a confined or safety-critical installation where the runaway margin carries real value; a service-life target beyond ten years. Two or more: price an LTO system honestly, sized on power, and compare cost per cycle. One or none: LFP (or, where weight dominates everything, a nickel chemistry) will almost certainly win, and the energy-density chart above is the reason. One caution on the safety point: the margin is against runaway initiation, not against heat generally. The Altairnano numbers above show what 55 °C does to LTO cycle life, and gassing accelerates with temperature, so a hot installation still needs real thermal design.

Chemistry selection is the first decision in a custom pack program, and it ripples into everything downstream: cell sourcing, BMS channel count, thermal design, and the certification program (a chemistry change generally makes your pack a new type for transport testing, a cost we quantified in our UN 38.3 cost breakdown). PBC works across LFP, NMC, LTO and sodium-ion; the duty-cycle numbers, not chemistry loyalty, pick the cell. Our catalog and motive power pages show where each chemistry lands in practice.
